Connect your AI client
Open the live session to your own AI client over the Model Context Protocol. One click inside the application — no config file to edit.
What actually happens
Clicking Connector starts a small HTTP server on 127.0.0.1 — your machine only. A bundled bridge relays it to your AI client over standard input/output, the transport MCP clients expect.
In Revit the server is off until you start it; the other applications start it when they open, and Settings can turn that off. It stops with you or the host, and nothing keeps running afterwards.
The one-click setup
Open Settings on the AEC Pilot ribbon tab, then the Setup Guide tab.
Pick your client: Claude Desktop, Claude Code, ChatGPT / Codex, Cursor, Google Antigravity.
Click the setup button. It writes its own entry into that client’s MCP configuration and nothing else.
Restart the AI client so it re-reads its configuration, then ask it something about the open document.
Settings → Setup Guide: the assistants found on the machine and what they’re set up for. Leave the multi-instance switch alone unless you drive several projects at once.
Which server name to expect
Each product has its own name, so all of them can be connected at once.
| Product | Server name | Default port |
|---|---|---|
| Revit | aec-pilot | 7823 |
| AutoCAD & Civil 3D | aec-cad | 7900 |
| Navisworks | aec-navis | 7950 |
| Inventor | aec-inventor | 8000 |
| 3ds Max | aec-max | 8050 |
| Robot Structural Analysis | aec-robot | 8100 |
The port is configurable in Settings. Change it only if something else uses it — then re-run the setup so the client follows.
Checking it worked
Two places tell you, and they answer different questions.
In the host application, the ribbon shows Connected or Disconnected; Settings → About shows the address and how many tools it registered.

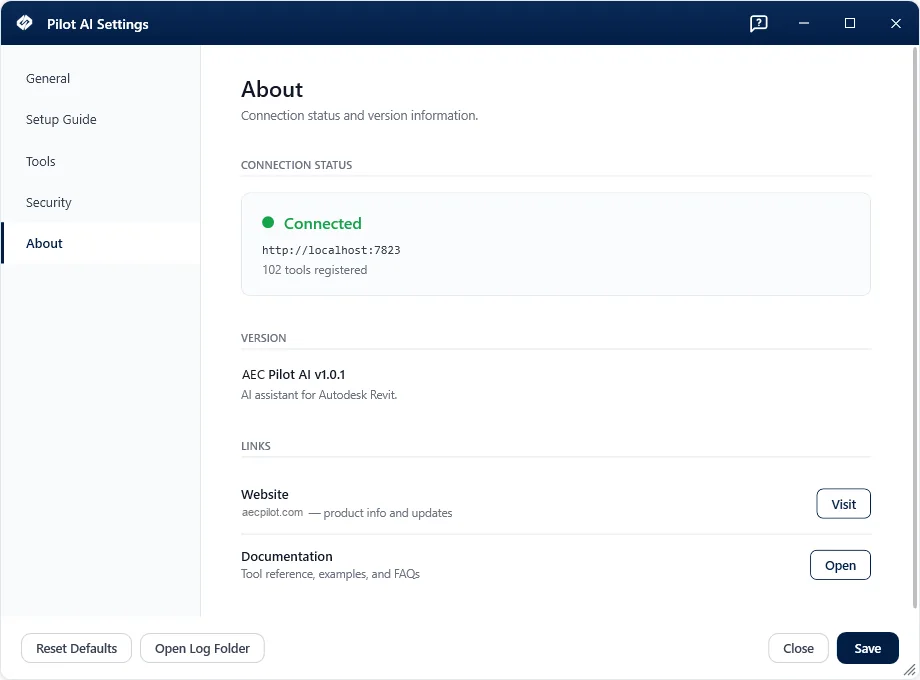

Settings → About. Connected, the port it is listening on, and how many tools it registered — if the count is there, the client has something to talk to.
In your AI client, the tools should be listed. Server but no tools? Start the connector from the ribbon. No server at all? Restart the client. More in Troubleshooting.
Several windows open at once
With several windows of one application open, tool calls go to the one you opened first — and every reply names it.
To target each window separately, turn on the multi-instance pool in the Setup Guide. Each window gets its own connector name.
Controlling what it can do
Settings → Tools lists every tool with a checkbox. Disabled tools are hidden completely — the assistant can’t call them or even see them.
Settings → Tools, here in Navisworks. The Read-Only column tells you which tools can change the document — a quick way to leave inspection on and switch editing off.
Use the Read-Only column: keep the readers, switch off the writers, and the assistant can answer anything and change nothing.
The code tool is the one to decide on: it compiles and runs C# against the live document, for anything the named tools don’t cover. Code is screened against a blocklist (files, processes, network, registry), and the feature can be switched off centrally. In the chat panel, Require approval before custom code previews it first.
